RAM / RAH Modularized Spiral Bevel Gearhead


Spiral bevel gearbox series has diverse output steering heads.  The pure steering head are also available for combining the existed application or gearbox for redesign the operating direction of mechanism.  These designs help engineer has more choices in structure applying.

▶️  Material aluminum alloy help heat dissipated quickly and reduce temperature rising.  ▶️  Good reciprocating positioning accuracy.  ▶️  Customized input mounting, able to work with various motors.  ▶️  No maintenance or replacement of lubricating oil in required under normal use.  ▶️  Diversified output shafts for different operating direction.  ▶️  Output torque is higher than that of general products.

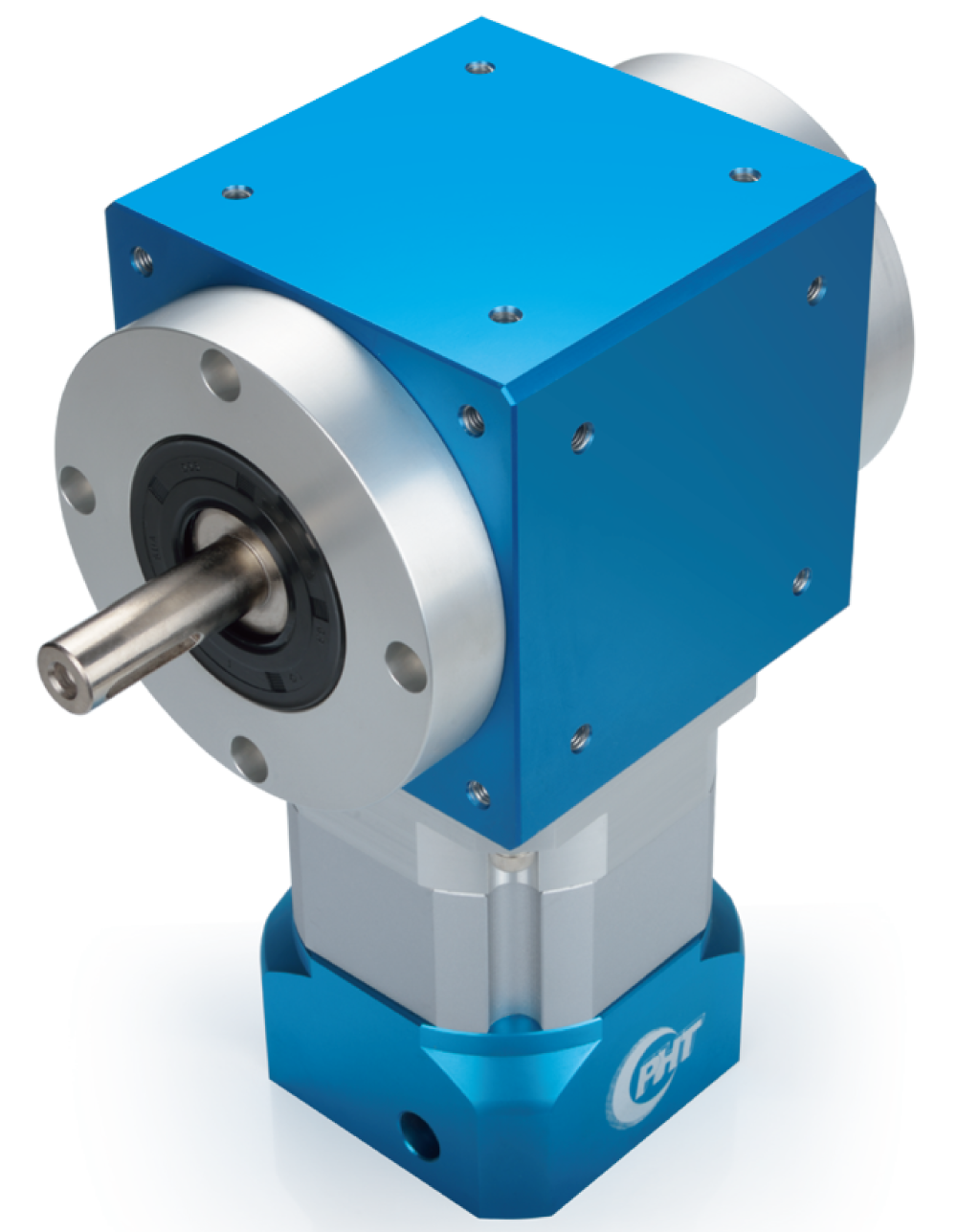

RAM-S series
Right-angle gearbox｜RAM-S series｜PHT Vertex Precision
Right-angle gearbox｜single shaft output
Frame size 60 / 90 / 120 / 150 / 180 / 220
Backlash 10 - 12 arc min
Noise 76 - 80 dB
Warranty 30,000 hrs (or one year)
Read more
RAM-2S series
Right-angle gearbox｜RAM-2S series｜PHT Vertex Precision
Right-angle gearbox｜dual shaft output
Frame size 60 / 90 / 120 / 150
Backlash 10 - 12 arc min
Noise 76 - 80 dB
Warranty 30,000 hrs (or one year)
Read more

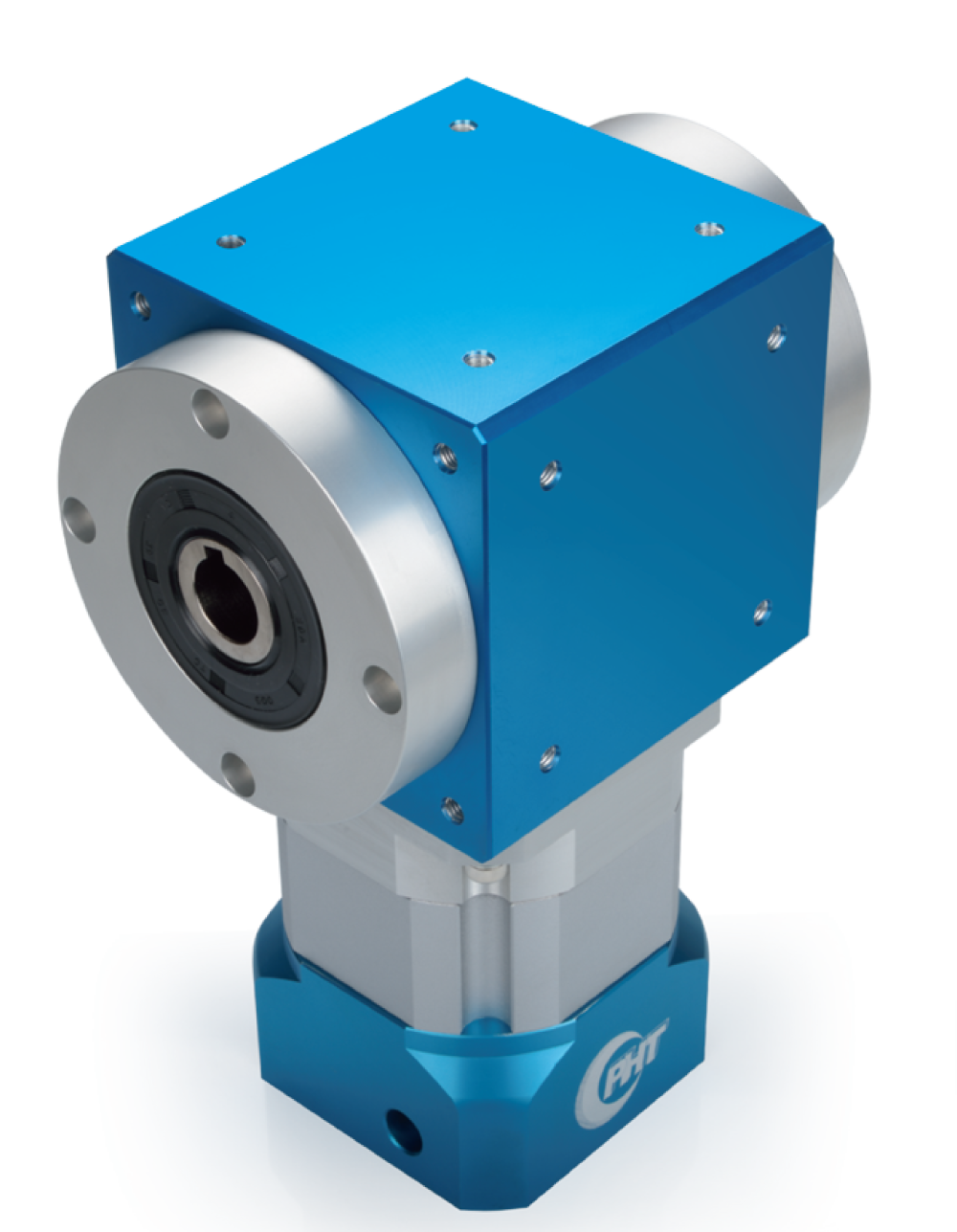

RAM-H series
Right-angle gearbox｜RAM-H series｜PHT Vertex Precision
Right-angle gearbox｜hollow shaft output
Frame size 60 / 90 / 120 / 150 / 180 / 220
Backlash 10 - 12 arc min
Noise 76 - 80 dB
Warranty 30,000 hrs (or one year)
Read more

RAM-F series
Right-angle gearbox｜RAM-F series｜PHT Vertex Precision
Right-angle gearbox｜disc flange output
Frame size 60 / 90 / 120 / 150 / 180 / 220
Backlash 10 - 12 arc min
Noise 76 - 80 dB
Warranty 30,000 hrs (or one year)
Read more

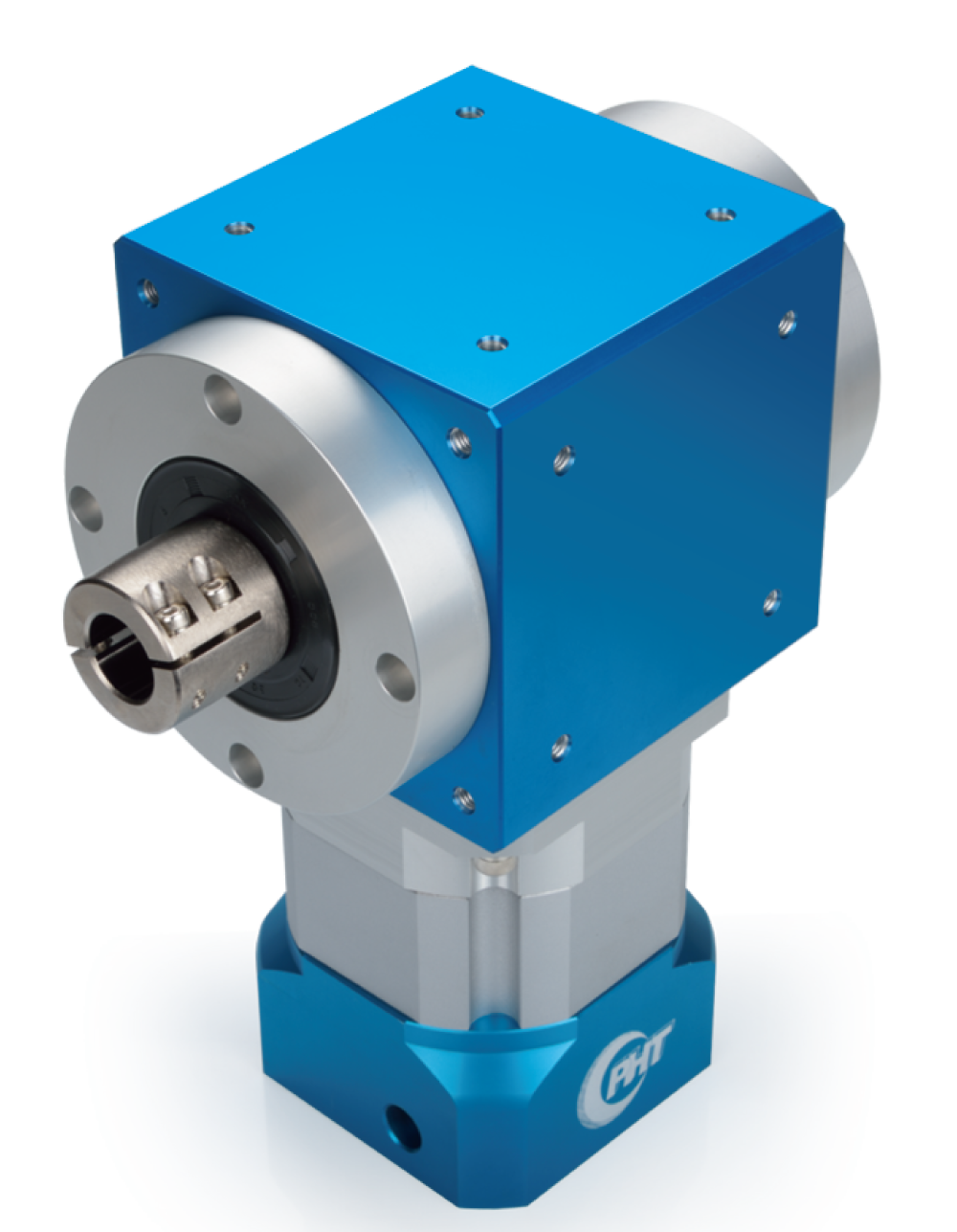

RAM-D series
Right-angle gearbox｜RAM-D series｜PHT Vertex Precision
Right-angle gearbox｜clamping output
Frame size 60 / 90 / 120 / 150 / 180 / 220
Backlash 10 - 12 arc min
Noise 76 - 80 dB
Warranty 30,000 hrs (or one year)
Read more

RAH-S series
Right-angle gearbox｜RAH-S series｜PHT Vertex Precision
Right-angle gearbox｜single shaft output
Frame size 60 / 90 / 120 / 150
Backlash 13 - 15 arc min
Noise 76 - 80 dB
Warranty 30,000 hrs (or one year)
Read more
RAH-2S series
Right-angle gearbox｜RAH-2S series｜PHT Vertex Precision
Right-angle gearbox｜dual shaft output
Frame size 60 / 90 / 120 / 150
Backlash 13 - 15 arc min
Noise 76 - 80 dB
Warranty 30,000 hrs (or one year)
Read more

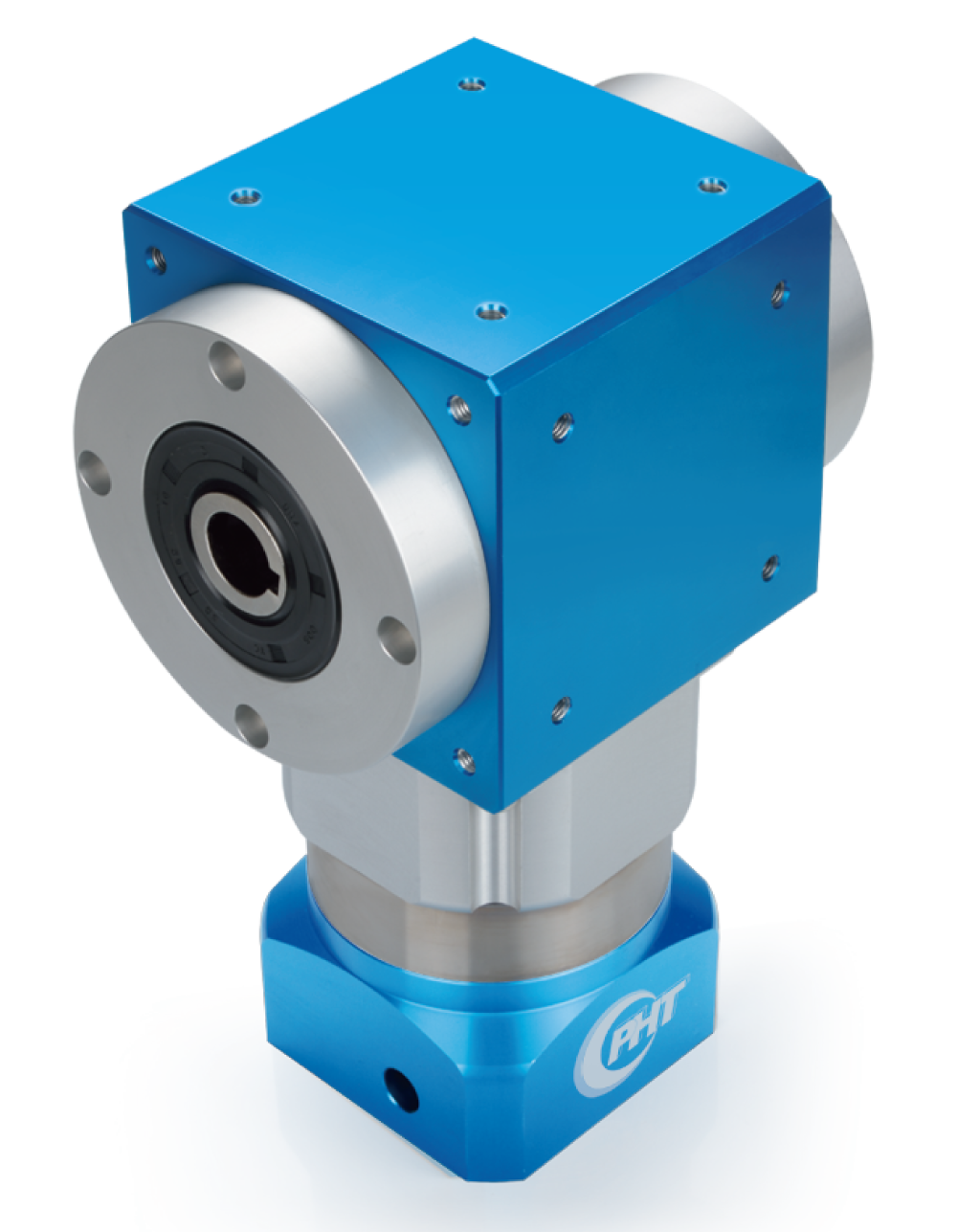

RAH-H series
Right-angle gearbox｜RAH-H series｜PHT Vertex Precision
Right-angle gearbox｜hollow shaft output
Frame size 60 / 90 / 120 / 150
Backlash 13 - 15 arc min
Noise 76 - 80 dB
Warranty 30,000 hrs (or one year)
Read more

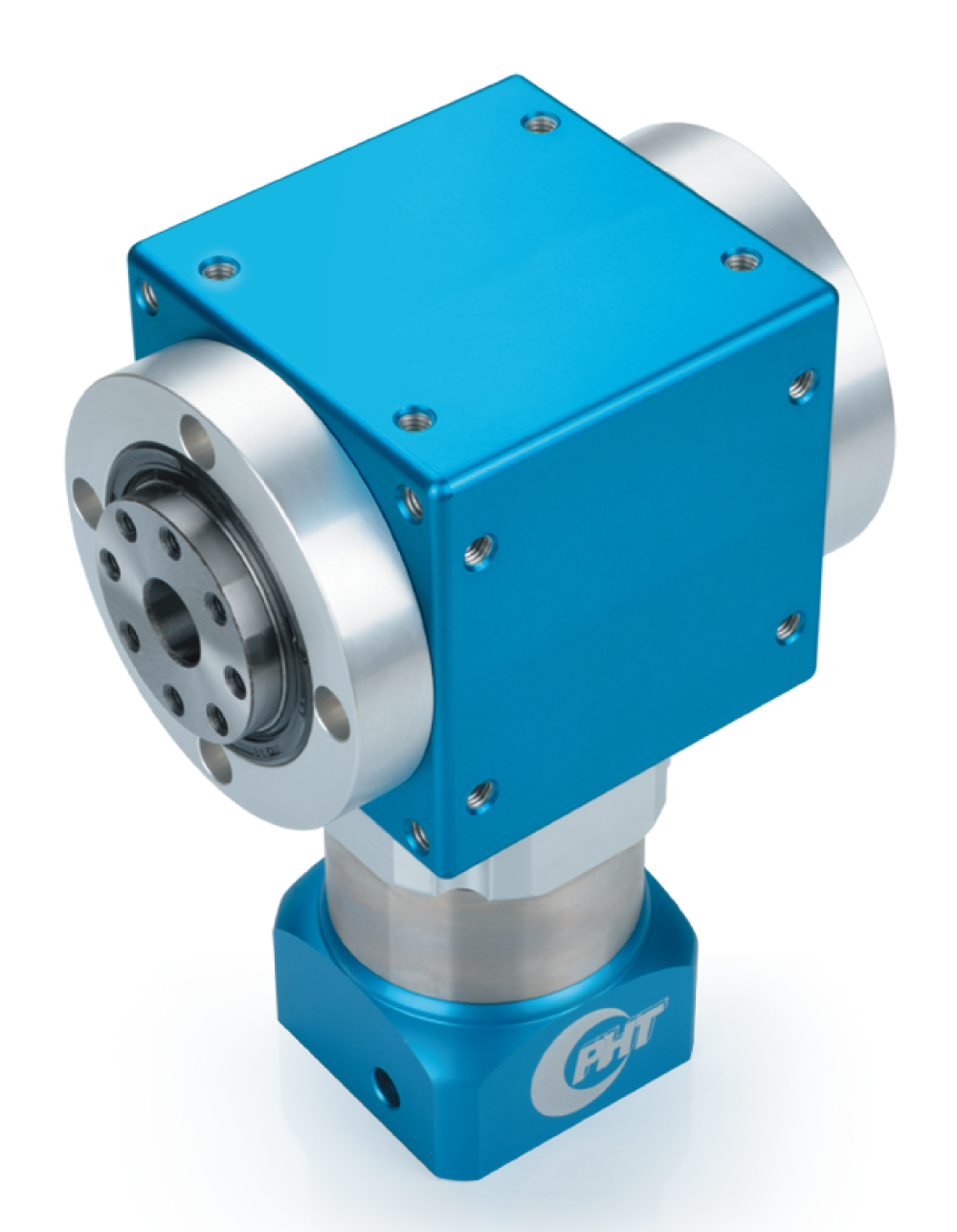

RAH-F series
Right-angle gearbox｜RAH-F series｜PHT Vertex Precision
Right-angle gearbox｜disc flange output
Frame size 60 / 90 / 120 / 150
Backlash 13 - 15 arc min
Noise 76 - 80 dB
Warranty 30,000 hrs (or one year)
Read more

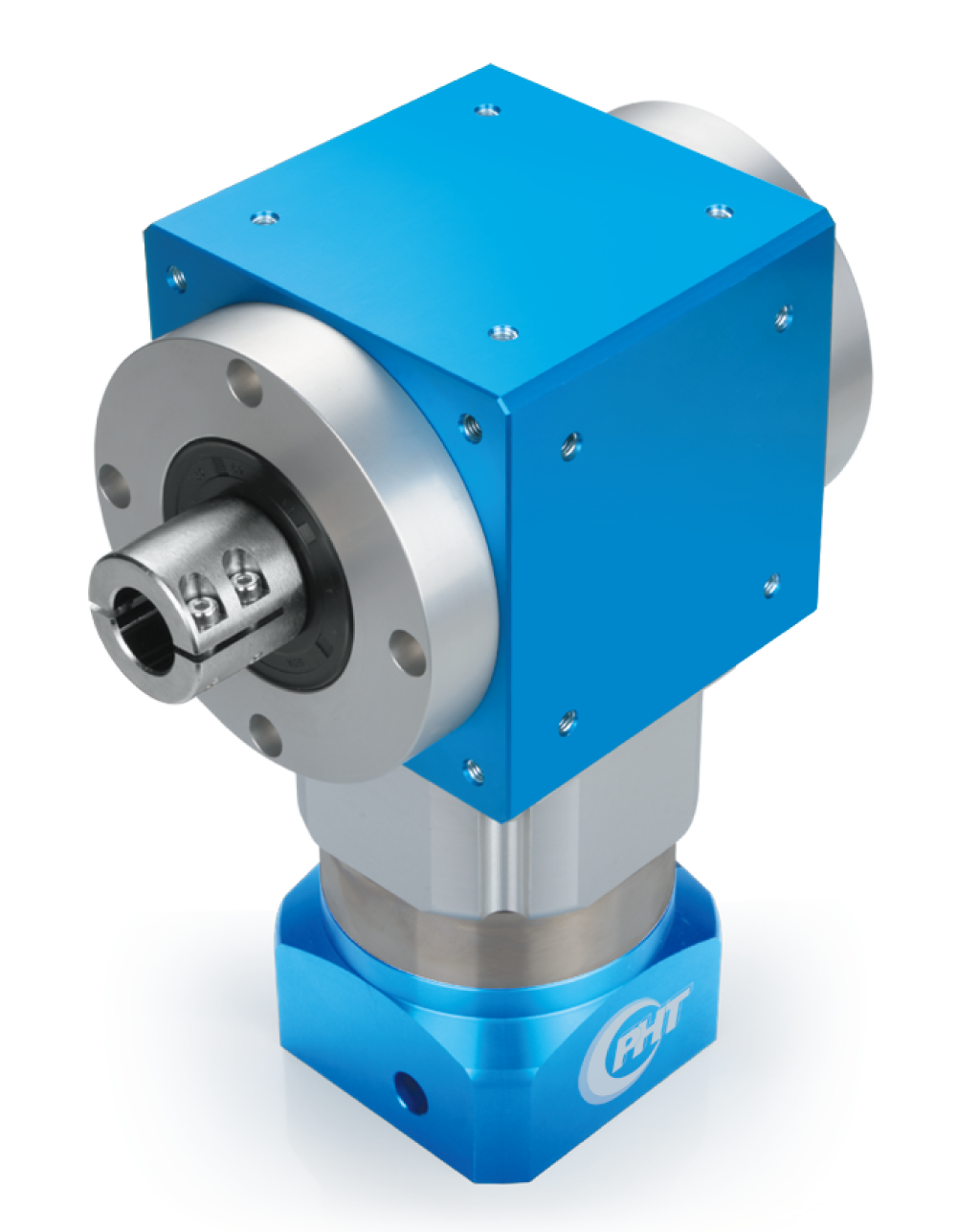

RAH-D series
Right-angle gearbox｜RAH-D series｜PHT Vertex Precision
Right-angle gearbox｜clamping output
Frame size 60 / 90 / 120 / 150
Backlash 13 - 15 arc min
Noise 76 - 80 dB
Warranty 30,000 hrs (or one year)
Read more
